點擊圖片放大產品名稱:
規格:
SJE
規格:SJE
File No.: LL98737
CSA-CUS APPROVAL
詳細規格:
File No.: LL98737 CSA-CUS APPROVAL

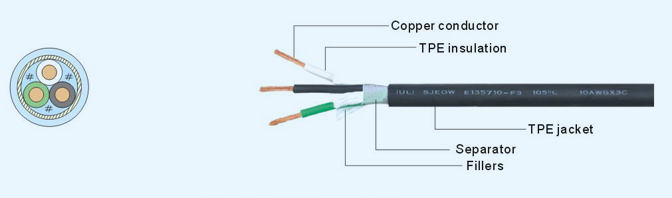

Product Description
Bare stranded copper conductor
Color-coded TPE insulation and jacket
Cores twisted together with fillers
Separator overcore
TPE jacketed water-resistant type
Rated temperature:60℃~105℃
Rated voltage:300V
Passed UL VW-1&CSA FT2 flame test
Oil-resistant type SJEO,SJEOO and Outdoor-use cord type SJEW are also available
Outdoor-use cords pass -40℃ cold bend test
Applications
For portable hand tools,washing machines,polishers,sanders,vibrators,shop lights,therapeutic machines,dish washers,medical equipment,office machines and outdoor-use cord sets
Specification Description
Wire Type | No. of Core | Conductor | Insulation | Jacket | Overall | |
AWG | No./mm | |||||
SJE SJTEO SJTEOO SJEW SJEOW SJEOOW | 3 | 18 | 41/0.160 | 0.76 | 0.76 | 7.8±0.1 |
3 | 16 | 26/0.252 | 0.76 | 0.76 | 8.5±0.1 | |
3 | 14 | 41/0.252 | 0.76 | 0.76 | 9.25±0.1 | |
3 | 12 | 65/0.252 | 1.14 | 1.14 | 11.0±0.1 | |
3 | 10 | 104/0.252 | 1.52 | 1.52 | 14.6±0.1 | |
更多產品
SJT
Product DescriptionBare stranded copper conductorColor-coded PVC insulation and jacketCores twisted togetherPVC jacketed water-resistant typeRated temperature:60℃~105℃Rated voltage:300VPassed UL VW-1&CSA FT2 flame testOil-resistant type SJTO,SJTOO and Outdoor-use cord type SJTW are also availableOutdoor-use cords pass -40℃ cold bend test ApplicationsFor portable hand tools,washing machines,polishers,sanders,vibrators,shop lights,therapeutic machines,dish washers,medical equipment,office machines and outdoor-use cord sets Specification Description Wire Type No. of Core Conductor JacketThicknessmm Overall Diameter mm AWG No./mm SJT SJTO SJTOO SJTW SJTOW SJTOOW 2 18 41/0.160 0.76 7.4±0.1 3 18 41/0.160 0.76 7.8±0.1 4 18 41/0.160 0.76 8.36±0.1 2 16 26/0.252 0.76 8.0±0.1 3 16 26/0.252 0.76 8.5±0.1 4 16 26/0.252 0.76 9.2±0.1 2 14 41/0.252 0.76 8.9±0.1 3 14 41/0.252 0.76 9.25±0.1 4 14 41/0.252 0.76 10.2±0.15 2 12 65/0.252 0.76 10.5±0.15 3 12 65/0.252 0.76 11.0±0.15 4 12 65/0.252 0.76 12.1±0.15 3 10 104/0.252 1.14 14.6±0.15
SVT
File No.: E135710 LL95737 UL/CSA APPROVAL Product DescriptionBare stranded copper conductorColor-coded PVC insulation and jacketSeparator overcorePVC jacketed water-resistant typeRated temperature:60℃~105℃Rated voltage:300VPassed UL VW-1&CSA FT2 flame test ApplicationsFor hight-duty portable tools,mixers and vacuum cleaners Specification Description Wire Type No. of Core Conductor JacketThicknessmm Overall Diameter mm AWG No./mm SVT 2 18 41/0.160 0.76 6.0±0.1 3 18 41/0.160 0.76 6.0±0.1 2 17 52/0.160 0.76 6.0±0.1 3 17 52/0.160 0.76 6.0±0.1 2 16 26/0.160 0.76 6.0±0.1 3 16 26/0.160 0.76 6.0±0.1
SPT (Integral)
File No.: E135710 LL95737 UL/CSA APPROVAL Product DescriptionBare stranded copper conductorColor-coded PVC insulation and jacketRated temperature:60℃~105℃Rated voltage:300VPassed UL VW-1&CSA FT2 flame testOutdoor-use cord type SPT-1W SPT-2W ApplicationsSPT-1&SPT-2:For use in household clocks,fans,radios and similar appliancesSPT-2 is for heavier construction than SPT-1SPT-3:For heavy-duty use in damp locations;especially suitable for refrigerators and room-size air conditioners Specification Description Wire Type No. of Core Conductor InsulationThicknessmm OverallDiametermm AWG No./mm SPT-1(W) 2 18 41/0.160 0.76 2.75x5.3 3 18 41/0.160 0.76 2.9x7.9 SPT-2(W) 2 18 41/0.160 1.14 3.5x6.8 3 18 41/0.160 1.14 3.7x8.7 2 16 26/0.252 1.14 3.7x7.4 3 16 26/0.252 1.14 3.9x9.1 SPT-3 2 18 41/0.160 1.52 4.25x8.25 3 18 41/0.160 1.52 4.25x9.8 2 16 26/0.252 1.52 4.5x8.8 3 16 26/0.252 1.52 4.5x11.6 2 14 41/0.252 2.03 5.9x10.6 3 14 41/0.252 2.03 5.9x12.8 2 12 65/0.252 2.41 7.2x12.6 3 12 65/0.252 2.41 7.2x15.3 2 10 104/0.252 2.79 8.4x17.8 3 10 104/0.252 2.79 8.4x17.8
NISPT (nonintegral)
File No.: E135710 LL95737 UL/CSA APPROVAL Product Description Bare stranded copper conductorColor-coded PVC insulation and jacketRated temperature:60℃~105℃Rated voltage:300VPassed UL VW-1&CSA FT2 flame test Applications NISPT-1&NISPT-2:For use in household clocks,speaker,radios and similar appliancesNISPT-2 is for heavier construction than NISPT-1 Specification Description Wire Type No. of Core Conductor InsulationThicknessmm JacketThicknessmm OverallDiametermm AWG No./mm NISPT-1 2 18 41/0.160 0.38 0.38 3.0x5.4 NISPT-2 2 18 41/0.160 0.76 0.38 3.7x7.1
UL Powe-Limited Circuit Cable Type CL2
File No.: E241235 UL APPROVAL Product DescriptionBare stranded copper conductorSolid PVC insulation PVC jacketedRated temperature:60,75,90 or 105℃ ApplicationsFor A/V,door bell & other signal appliance Specification Description Wire Type No. of Core Conductor InsulationThicknessmm JacketThicknessmm OverallDiametermm AWG No./mm CL2 2 18 16/0.252 0.23 0.58 4.7±0.1 4 18 16/0.252 0.23 0.58 5.4±0.1 2 16 26/0.252 0.23 0.58 5.3±0.1 4 16 26/0.252 0.23 0.58 6.1±0.1 2 14 41/0.252 0.23 0.58 6.1±0.1 4 14 41/0.252 0.23 0.58 7.1±0.1 2 12 65/0.252 0.23 0.58 7.0±0.1 4 12 65/0.252 0.23 0.58 8.2±0.1
UL Underground Low Energy Circuit Cable
File No.: E239881 UL APPROVAL Product DescriptionBare stranded copper conductorColor-coded PVC insulation Rated temperature:60℃ Rated voltage:150VSunlight Resistant ApplicationsOut-door use for most condition, for example gardens&golf course irrigation system Specification Description Wire Type No. of Core Conductor InsulationThicknessmm OverallDiametermm AWG No./mm Underground Low Energy Circuit Cable 2 18 16/0.252 1.14 3.35x7.1 2 16 26/0.252 1.14 3.9x8.2 2 14 41/0.252 1.14 4.5x9.4 2 12 65/0.252 1.14 4.7x10.3 2 10 104/0.252 1.14 5.25x11.2 2 8 131/0.252 1.52 7.4x15.4
SRDT
File No.: E135710 UL/cUL APPROVAL Product DescriptionParallel cordBare stranded copper conductorColor-coded PVC insulation Rated temperature:60℃,90℃Passed UL VW-1&CSA FT2 flame testRound cordBare stranded copper conductorColor-coded PVC insulationCores twisted together with fillersSeparator overcorePVC jacketed water-resistant typeRated temperature:60℃,90℃Passed UL VW-1&CSA FT2 flame test ApplicationsRange and Dryer application Specification Description Wire Type No. of Core Conductor InsulationThicknessmm JacketThicknessmm OverallDiametermm AWG No./mm SRDT 3 10 26/0.506 2.54 / 8.3x20.6 2+1 8/2C 41/0.506 2.54 / 9.0x21.8 10/1C 26/0.506 2+1 6/2C 65/0.506 2.54 / 10.0x24.4 8/1C 41/0.506 4 10 26/0.506 1..14 1.52 16.3±0.2 2+2 8/2C 41/0.506 1.14 1.52 17.6±0.2 10/2C 26/0.506 2+2 6/2C 65/0.506 1.14 1.52 19.5±0.2 8/2C 41/0.506
SE
File No.: LL95737 CSA-CUS APPROVAL Product DescriptionBare stranded copper conductorColor-coded TPE insulation and jacketCores twisted together with fillersSeparator overcoreTPE jacketed water-resistant typeRated temperature:60℃~105℃Rated voltage:600VPassed UL VW-1&CSA FT2 flame testOil-resistant type SEO,SEOO and Outdoor-use cord type SEW are also availableOutdoor-use cords pass -40℃ cold bend test ApplicationsFor large dynamoelectric appliance,recreational vehicle&mobile homes Specification Description Wire Type No. of Core Conductor InsulationThicknessmm JacketThicknessmm OverallDiametermm AWG No./mm ST STO STOO STW STOW STOOW 3 18 41/0.160 0.76 1.52 9.3±0.1 3 16 26/0.252 0.76 1.52 9.9±0.1 3 14 41/0.252 1..14 2.03 13.4±0.15 3 12 65/0.252 1.14 2.41 15.2±0.2 3 10 104/0.252 1.14 2.41 16.7±0.2
