點擊圖片放大產品名稱:
規格:
NISPT (nonintegral)
規格:NISPT (nonintegral)
File No.: E135710 LL95737 UL/CSA APPROVAL
詳細規格:
File No.: E135710 LL95737 UL/CSA APPROVAL

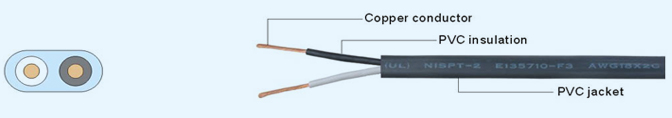

Product Description
Bare stranded copper conductor
Color-coded PVC insulation and jacket
Rated temperature:60℃~105℃
Rated voltage:300V
Passed UL VW-1&CSA FT2 flame test
Applications
NISPT-1&NISPT-2:For use in household clocks,speaker,radios and similar appliances
NISPT-2 is for heavier construction than NISPT-1
Specification Description
Wire Type | No. of Core | Conductor | Insulation | Jacket | Overall | |
AWG | No./mm | |||||
NISPT-1 | 2 | 18 | 41/0.160 | 0.38 | 0.38 | 3.0x5.4 |
NISPT-2 | 2 | 18 | 41/0.160 | 0.76 | 0.38 | 3.7x7.1 |
